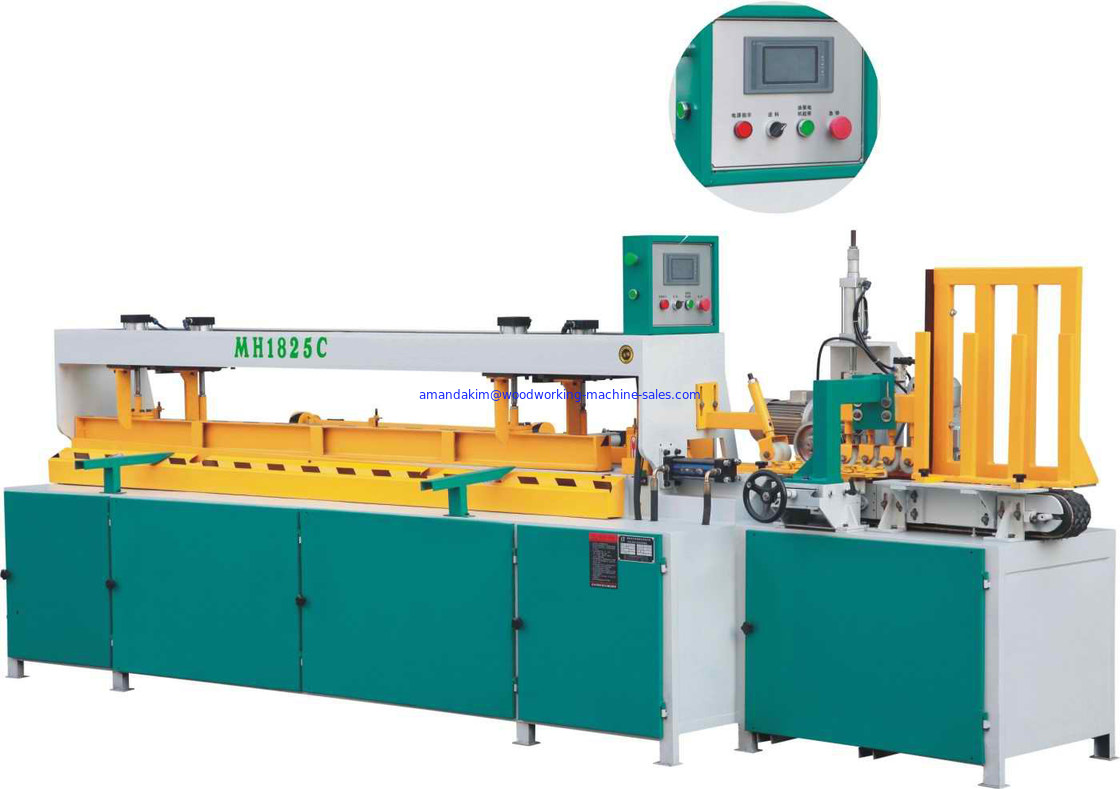

Full automatic Finger jointer machine comb tenoon jointing machine
This machine is mainly used for timber lateral stitching, the same width, thickness, length of wooden slats slats spliced into a certain length, it is one of the key equipment of timber production line, with high efficiency machine.
(1) would have been on the plastic timber combine;
(2) cutting the length of the material needed;
(3) the final assembly is pressure fed by a strong high pressure system, then the wood will have joined the order sent.
The machine main advantages: a fast :400-440 / hour (journeyman);
microcomputer control, simple operation, each employee can be only one.
|
Min process length |
120mm |
|
The maximum length of joints |
2500mm |
|
Maximum tenon width |
30-80mm |
|
Maximum tenon Thickness |
12-25mm |
|
Spliced strips of wood thickness |
10-25mm |
|
Work air pressure |
3mpa |
|
Motor |
4.2kw |
|
Max output oil pressure |
5Mpa |
|
Dimensions |
4150*1160*1480mm |
