MDF cabinet wooden door sanding machine woodworking machinery

MDF cabinet wooden door sanding machine woodworking machinery

    • MDF cabinet wooden door sanding machine woodworking machinery
    • MDF cabinet wooden door sanding machine woodworking machinery
    • MDF cabinet wooden door sanding machine woodworking machinery
    • MDF cabinet wooden door sanding machine woodworking machinery
  • MDF cabinet wooden door sanding machine woodworking machinery

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: KCARPENTER
    Certification: ISO,CE
    Model Number: 1300-6P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 2700-6200usd/set
    Packaging Details: Plywood box
    Delivery Time: 15 days
    Payment Terms: TT/ LC
    Supply Ability: 50set/month
    Contact Now
    Detailed Product Description

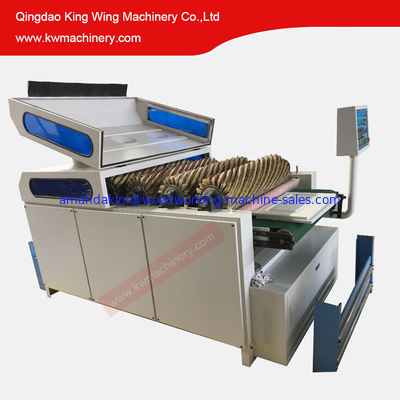

    MDF cabinet wooden door sanding machine woodworking machinery

    Model

    KC1300-6P (with 6 sandpaper rollers)

    KC1300-4P (with 4 sandpaper rollers)

    https://youtu.be/-zKtWYN56iU (6 sandpaper rollers)

    https://youtu.be/K1Uo0u1UKxw (special customized by clients final effect picture in the end)

    MDF cabinet wooden door sanding machine woodworking machinery

    Specification:

    • Motor's rpm control by inverters,wire brush roller inverter 7.5kw,dupont silk inverter 7.5kw, 4 sandpaper rollers has 2 inverters each 5.5kw .
    • Sandpaper strips: grit 400,600 Germany brand “HERMES” install on machine.
    • Machine main body and motors inverters warranty for 1 year, 380V 50HZ 3Phase.
    Model KC1300-6P
    Sandpaper rollers quantity 6 pcs
    Press roller quantity 6pcs
    inverters 5.5kw *4pcs (each 2 sandpaper roller use 1 inverter)
    Motors 2.2kw*6pcs
    Conveyor motor size 1.1kw
    VFD speed control 5-30m/min
    Max. working width 1300mm
    Each rollers diameter 300mm
    Rollers center distance 330mm
    Each 2 rollers turning direction opposite
    Power 380V 50HZ 3PHASE
    Packing size 3000*1800*1450mm
    G.W. 1800kg



    Sandpaper specification



    High quality sandpaper

    Brand: Germany HERMES

    Grit: 180,240,320,400,600

    Quantity: Each roller 20 strips

    Length:1338mm

    MDF cabinet wooden door sanding machine woodworking machinery



    MDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machinery

    MDF cabinet wooden door sanding machine woodworking machinery

    MDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machineryMDF cabinet wooden door sanding machine woodworking machinery

    MDF cabinet wooden door sanding machine woodworking machinery



    MDF cabinet wooden door sanding machine woodworking machinery

    Other polishing machine models



    1000-6P , 1300-6P, 6 sanding rollers, working width 1000mm, 1300mm customized

    Working video link: https://youtu.be/-zKtWYN56iU

    MDF cabinet wooden door sanding machine woodworking machinery

    1000-4YP ,sanding machine with 4sanding rollers, 9 sanding discs. 5 discs +4 discs in 2 lines.

    Working video link: https://youtu.be/8bC8nx1T0OY

    MDF cabinet wooden door sanding machine woodworking machinery

    400-4P,630-4P , 4 sanding rollers sanding machine, with different working width 400mm or 630mm. working width accept customized.

    MDF cabinet wooden door sanding machine woodworking machinery

    1000-4P,1300-4P, sanding polishing machine with 4 sanding rollers, working width accept customized.

    MDF cabinet wooden door sanding machine woodworking machinery

    1300-4YP, polishing machine with 4 polishing rollers, 9 polishing discs. 5 discs +4 discs in 2 lines.

    MDF cabinet wooden door sanding machine woodworking machinery

    1000-2P, 1300-2P, 400-2P, 630-2P, Sanding machine with 2 sanding rollers.

    Working width accept customized.

    MDF cabinet wooden door sanding machine woodworking machinery

    MDF cabinet wooden door sanding machine woodworking machinery
