    Product Details:

    Place of Origin: Shandong, China
    Brand Name: KCARPENTER
    Certification: ISO,CE
    Model Number: KC1000-6R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 2700-6200usd/set
    Packaging Details: Plywood box
    Delivery Time: 15 days
    Payment Terms: TT/ LC
    Supply Ability: 50set/month
    Contact Now
    Detailed Product Description

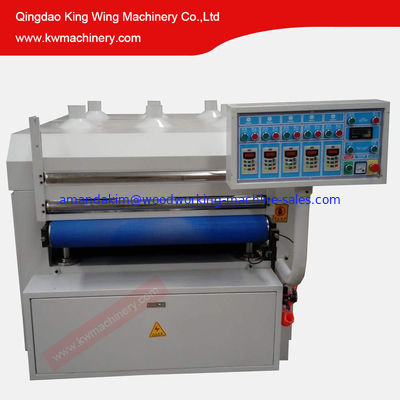

    wood wire brush machine sanding machine KC1000-6R

    https://youtu.be/K1Uo0u1UKxw (special customized by clients final effect picture in the end)

    wood wire brush machine sanding machine KC1000-6R

    Model KC1000-6R (wire brush)
    Wire brush roller 1 roller, wire diameter 0.3mm
    Dupont silk brush roller 1 roller , dupont silk diameter 0.8mm
    inverters 5.5kw *2 pcs, 7.5kw *2 pcs
    Motors 4 sanding Brush heads has 4 motors (Each motor 2.2kw);
    2 wire brush rollers has 2 motors
    (Each motor power 7.5kw)
    Conveyor motor size 1.5kw
    VFD speed control 5-30m/min
    Max. working width 1000mm
    Sandpaper rollers diameter 300mm
    Wire brush roller diameter 290mm
    Dupot silk brush roller diameter 300mm
    Rollers center distance 330mm
    Packing size 3000*1500*1450mm
    Weight 1500kg

    KC1300-6P (with 6 sandpaper rollers)

    KC1300-4P (with 4 sandpaper rollers)

    https://youtu.be/-zKtWYN56iU (6 sandpaper rollers)



    wood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6R

    Specification:

    • Motor's rpm control by inverters,wire brush roller inverter 7.5kw,dupont silk inverter 7.5kw, 4 sandpaper rollers has 2 inverters each 5.5kw .
    • Sandpaper strips: grit 400,600 Germany brand “HERMES” install on machine.
    • Machine main body and motors inverters warranty for 1 year, 380V 50HZ 3Phase.
    Model KC1300-6P
    Sandpaper rollers quantity 6 pcs
    Press roller quantity 6pcs
    inverters 5.5kw *4pcs (each 2 sandpaper roller use 1 inverter)
    Motors 2.2kw*6pcs
    Conveyor motor size 1.1kw
    VFD speed control 5-30m/min
    Max. working width 1300mm
    Each rollers diameter 300mm
    Rollers center distance 330mm
    Each 2 rollers turning direction opposite
    Power 380V 50HZ 3PHASE
    Packing size 3000*1800*1450mm
    G.W. 1800kg



    Sandpaper specification



    High quality sandpaper

    Brand: Germany HERMES

    Grit: 180,240,320,400,600

    Quantity: Each roller 20 strips

    Length:1338mm

    wood wire brush machine sanding machine KC1000-6R



    wood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6R

    wood wire brush machine sanding machine KC1000-6R

    wood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6Rwood wire brush machine sanding machine KC1000-6R

    wood wire brush machine sanding machine KC1000-6R



    wood wire brush machine sanding machine KC1000-6R

    Other polishing machine models



    1000-6P , 1300-6P, 6 sanding rollers, working width 1000mm, 1300mm customized

    Working video link: https://youtu.be/-zKtWYN56iU

    wood wire brush machine sanding machine KC1000-6R

    1000-4YP ,sanding machine with 4sanding rollers, 9 sanding discs. 5 discs +4 discs in 2 lines.

    Working video link: https://youtu.be/8bC8nx1T0OY

    wood wire brush machine sanding machine KC1000-6R

    400-4P,630-4P , 4 sanding rollers sanding machine, with different working width 400mm or 630mm. working width accept customized.

    wood wire brush machine sanding machine KC1000-6R

    1000-4P,1300-4P, sanding polishing machine with 4 sanding rollers, working width accept customized.

    wood wire brush machine sanding machine KC1000-6R

    1300-4YP, polishing machine with 4 polishing rollers, 9 polishing discs. 5 discs +4 discs in 2 lines.

    wood wire brush machine sanding machine KC1000-6R

    1000-2P, 1300-2P, 400-2P, 630-2P, Sanding machine with 2 sanding rollers.

    Working width accept customized.

    wood wire brush machine sanding machine KC1000-6R

    wood wire brush machine sanding machine KC1000-6R
