| Place of Origin: | Shandong, China |
| Brand Name: | KCARPENTER |
| Certification: | ISO,CE |
| Model Number: | 1300-6P |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 2700-6200usd/set |
| Packaging Details: | Plywood box |
| Delivery Time: | 15 days |
| Payment Terms: | TT/ LC |
| Supply Ability: | 50set/month |

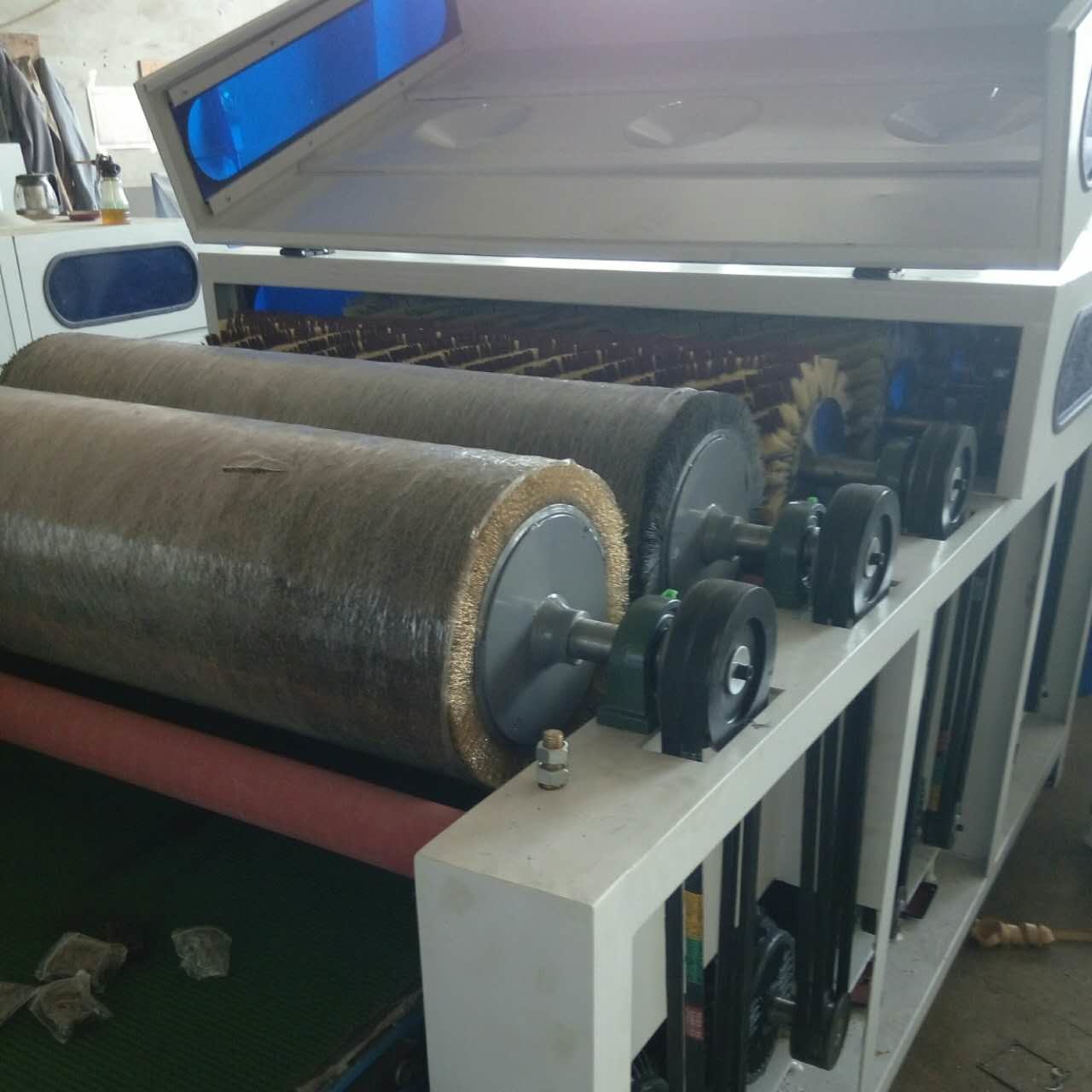

Wire brush roller dupont brush roller and sandpaper rollers polishing machine for wood floor
Video link: https://youtu.be/K1Uo0u1UKxw
Motor's rpm control by inverters,wire brush roller inverter 7.5kw,dupont silk inverter 7.5kw, 4 sandpaper rollers has 2 inverters each 5.5kw .
Sandpaper strips: grit 120, 180,240,240 install on machine.
Notice: machine main body and motors inverters warranty for 1 year, 380V 50HZ 3Phase.
| Model | KC1000-6P |
| Wire brush roller | 1 roller, wire diameter 0.3mm |
| Dupont silk brush roller | 1 roller , dupont silk diameter 0.8mm |
| inverters | 5.5kw *2 pcs, 7.5kw *2 pcs |
| Motors | 4 sanding Brush heads has 4 motors (Each motor 2.2kw)； 2 wire brush rollers has 2 motors (Each motor power 7.5kw) |
| Conveyor motor size | 1.5kw |
| VFD speed control | 5-30m/min |
| Max. working width | 1000mm |
| Sandpaper rollers diameter | 300mm |
| Wire brush roller diameter | 290mm |
| Dupot silk brush roller diameter | 300mm |
| Rollers center distance | 330mm |
Sandpaper specification
High quality sandpaper
Brand: Germany HERMES
Grit: 180,240,320,400,600
Quantity: Each roller 20 strips
Length:1338mm
The groove adjustable
Other polishing machine models
|
1000-6P , 1300-6P, 6 sanding rollers, working width 1000mm, 1300mm customized Working video link: https://youtu.be/-zKtWYN56iU
|
|
1000-4YP ,sanding machine with 4sanding rollers, 9 sanding discs. 5 discs +4 discs in 2 lines. Working video link: https://youtu.be/8bC8nx1T0OY
|
|
400-4P,630-4P , 4 sanding rollers sanding machine, with different working width 400mm or 630mm. working width accept customized.
1000-4P,1300-4P, sanding polishing machine with 4 sanding rollers, working width accept customized.
|
|
1300-4YP, polishing machine with 4 polishing rollers, 9 polishing discs. 5 discs +4 discs in 2 lines.
|
|
1000-2P, 1300-2P, 400-2P, 630-2P, Sanding machine with 2 sanding rollers. Working width accept customized.
|
