| Place of Origin: | Shandong, China |
| Brand Name: | KCARPENTER |
| Certification: | CE |
| Model Number: | SMB- |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000-9000USD/SET |
| Packaging Details: | Plywood box |
| Delivery Time: | 15 days |
| Payment Terms: | TT/ LC |
| Supply Ability: | 30 sets a month |
Four sides planner also called four sides moulder
How to choose a four sides moulder?
| According to different working width choose machine. Such as 130mm (SMB-4013). 150mm(SMB-4015), 160mm, 180mm, 200mm, 230mm | ||
| According to different requriement choose : 4 spindles, 5 spindles, 6 spindles. | ||
| In single surface the more spindles it means the more depth it will cut . | ||
| According to different wood product, adjust machine's motor power |
What this four side moulder can do?
|
|
|

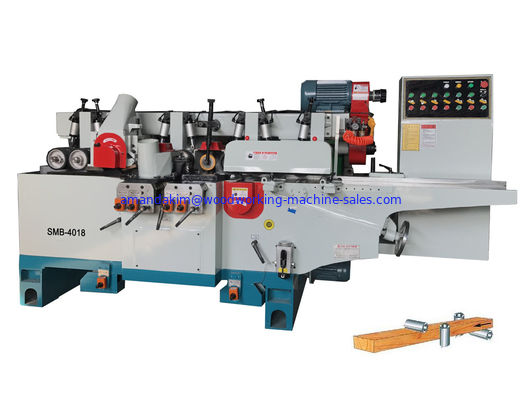

Four side planner pictures:
|
|
|
| Model | SMB-4013 | SMB-4015 |
| Working width | 20-130mm | 20-150mm |
| Working thickness | 8-100mm | 8-100mm |
| Feeding speed | 5-20m/min | 5-20m/min |
| Feeding power | 1.5kw | 2.2kw |
| Knife speed | 6000r/min | 6000r/min |
| Lower horizontal shaft power | 2.2-2.3kw | 2.2-2.3kw |
| Upper horizontal shaft power | 4kw | 4kw |
| Right side vertical knife arbor power | 2.2kw | 2.2kw |
| Cross beam lifting and lowering power | 0.37kw | 0.37kw |
| Total power | 12.47kw | 14.77kw |
| Max.turning circle | 115mm | 115mm |
| Total weight | 1400kg | 1400kg |
| Packing size | 2500*1400*1800mm | 2500*1400*1800mm |
