| Place of Origin: | qingdao China |
| Brand Name: | KW |
| Model Number: | KC308 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Plywood case |
| Delivery Time: | 15-30 days |
| Payment Terms: | D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
| Voltage: | Customized | Warranty: | 1 Year |
|---|

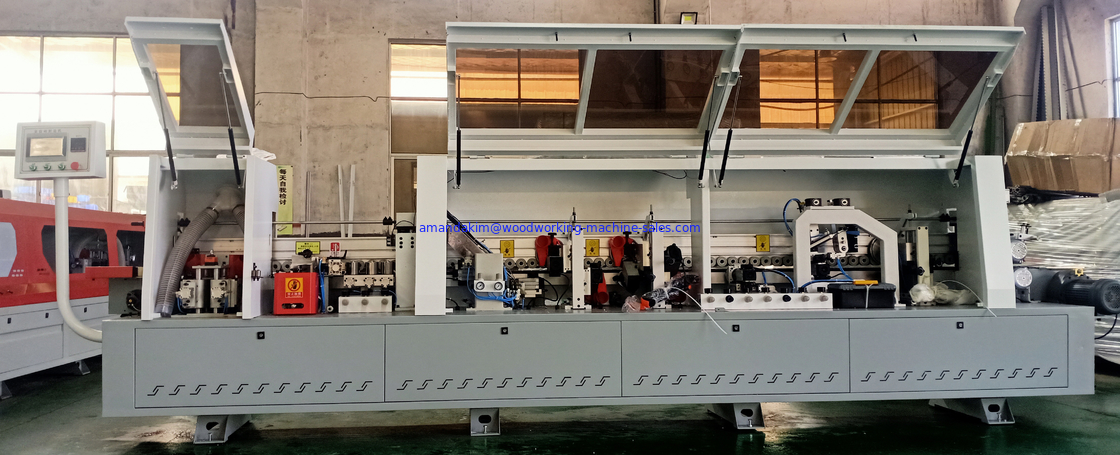

Automatic edge banding machine KC308
Test video:
https://youtu.be/o5tEprwSEZ8
Functions:
Pre-milling,Gluing,End trimming,Rough trimming,Fine trimming,Corner trimming,Scraping,Buffing.
| Model | KC308 |
| Control Panel | Touch screen |
| Motor power | 9.5kw |
| Feeding speed | High--middle--low speed 15-22m/min |
| Panel thickness | 10-60mm |
| Panel length | ≥150mm |
| Edge banding tape thickness | 0.4-3mm |
| Panel width | ≥60mm |
| Working air pressure | 0.6-0.8Mpa |
| Pre-milling motor | 2.2kw*2pcs |
| Glue motor | 0.37kw |
| End cutting motor | 0.55kw*2pcs |
| Rough trim motor | 0.75kw*2pcs |
| Fine trim motor | 0.75kw*2pcs |
| Round trim motor | 0.3kw*2pcs |
| Polishing motor | 0.18kw*2pcs |
| Feeding motor | 1.5kw |
| Lift motor | 0.18kw |
| N.W./G.W. | 1400kg/1600kg |
| Machine size | 5700*800*1500mm |
| Package size | 6200*1000*1750mm |
