    Product Details:

    Place of Origin: Shandong, China
    Brand Name: KCARPENTER
    Certification: ISO,CE
    Model Number: RPS1000R-R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 6000-15000usd/set
    Packaging Details: Plywood box
    Delivery Time: 15 days
    Payment Terms: TT/ LC
    Supply Ability: 50set/month
    Contact Now
    Detailed Product Description

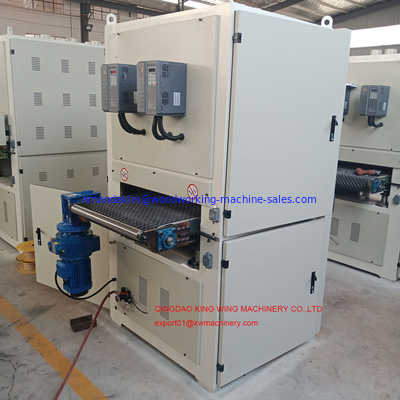

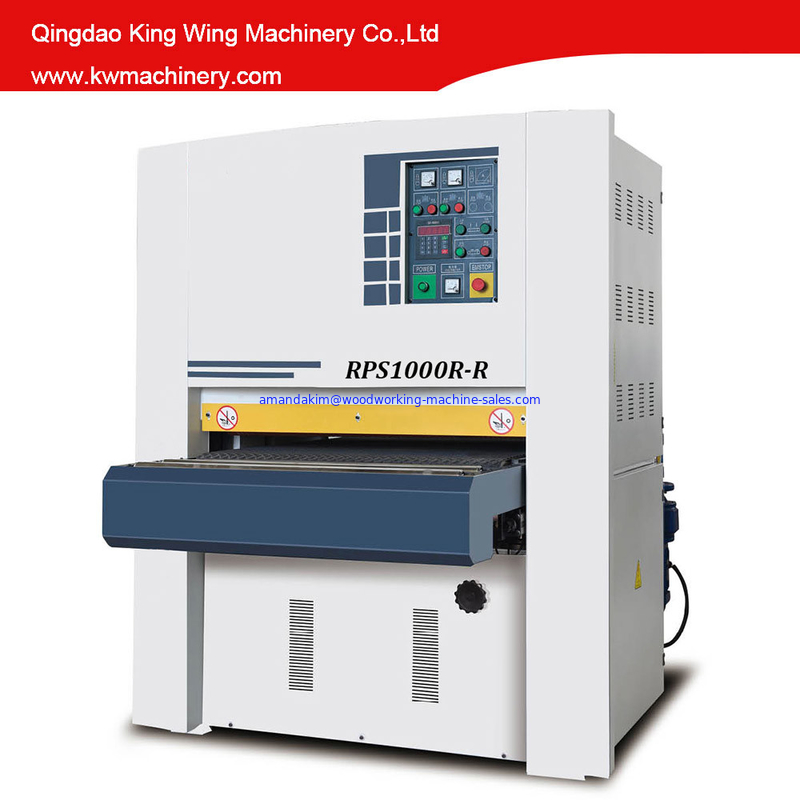

    RPS1000-R-R wide belt sander lacquer sanding machine for UV line

    1. This machine is suitable for furniture, floor , door and window,decorative board and so on.

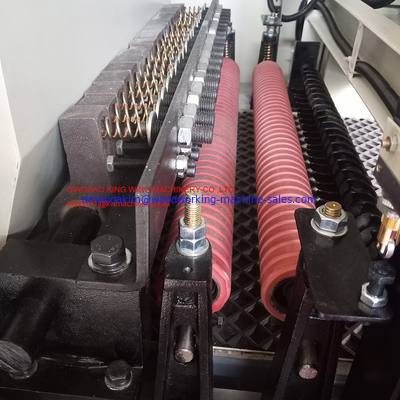

    2. Large diameter eccentric soft sanding roll, fine stability.
    3. equipment with fine 3M polishing roller
    4. Belt cleaning device to extend the service life of belt.
    Model RPS1000R-R
    Max .working width 1000mm
    Min. Working length 300mm
    Max .working thickness 3-110mm
    Speed of conveyor 6-30m/min
    Belt speed speed adjustable by inverter
    Total motor power 16.87kw
    No.1 abrasive belt power 7.5kw
    No.2 abrasive belt power 7.5kw
    Power of conveyor belt 1.5kw
    Power of lifting 0.37kw
    Inverter power 7.5kw*2pcs
    Diameter of No.1 abrasive belt 190mm
    Diameter of No.2 abrasive belt 190mm
    Size of abrasive belt 1020*2000mm
    Working pressure 0.6Mpa
    Consumption of Compressed air 5000m³/h
    Overall dimensions 1900*1600*2100mm
    Net weight 2200KG



    RPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV lineRPS1000-R-R wide belt sander lacquer sanding machine for UV line

    RPS1000-R-R wide belt sander lacquer sanding machine for UV line

    RPS1000-R-R wide belt sander lacquer sanding machine for UV line
