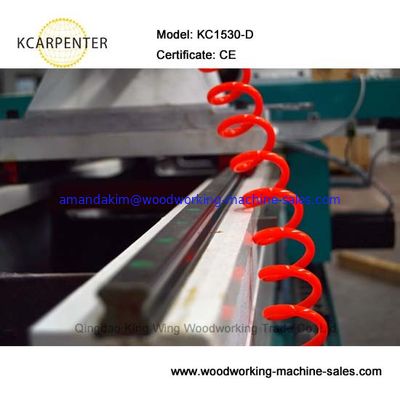

Full automatic double spindles wood turning lathe machine

Full automatic double spindles wood turning lathe machine

    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
    • Full automatic double spindles wood turning lathe machine
  • Full automatic double spindles wood turning lathe machine

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: KCARPENTER
    Certification: CE
    Model Number: KC1530-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 6800usd/set
    Packaging Details: Plywood box
    Delivery Time: 15 days
    Payment Terms: TT/ LC
    Supply Ability: 20sets per month
    Contact Now
    Detailed Product Description
    Motor: Stepper Motors

    MODEL KC1530-D
    Max. working length 1500mm (option:2000/2500/3000mm)
    Max. turning diameter 300mm/160mm (single spindle/double spindle)
    Air pressure 0.6-0.8Mpa
    Voltage 380V,50HZ,3Phase (customized)
    Max. working speed 2000mm/min
    Min working length 0.1mm
    Transmission way X Z ball screw, Y rack gear drive
    Guid brand HIWIN (Taiwan)
    Motor power 4kw
    Main spindle motor 3.5kw air cooling
    Control system DSP
    Knife material Hard alloy
    Motor stlye Stepper motor
    Drive YAKO driver
    Inverter beishide
    N.W/G.W 1550/1600kg
    Packing size 3100*1200*1600mm







    Full automatic double spindles wood turning lathe machineFull automatic double spindles wood turning lathe machineFull automatic double spindles wood turning lathe machineFull automatic double spindles wood turning lathe machineFull automatic double spindles wood turning lathe machine

    Full automatic double spindles wood turning lathe machine

    Full automatic double spindles wood turning lathe machine
