    Product Details:

    Place of Origin: Qingdao
    Brand Name: KCARPENTER
    Certification: ISO
    Model Number: KC2500S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 3000-7000USD/SET
    Packaging Details: Plywood box
    Delivery Time: 15 days
    Payment Terms: TT/ LC
    Supply Ability: 20 sets per month.
    Detailed Product Description

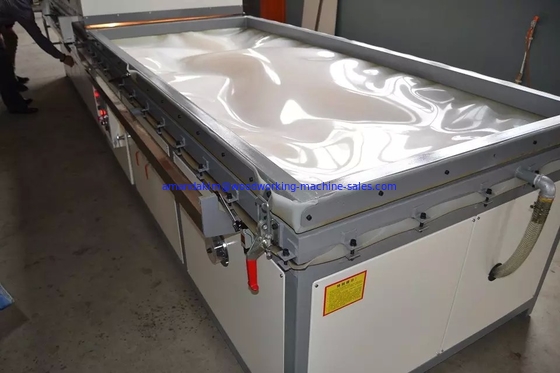

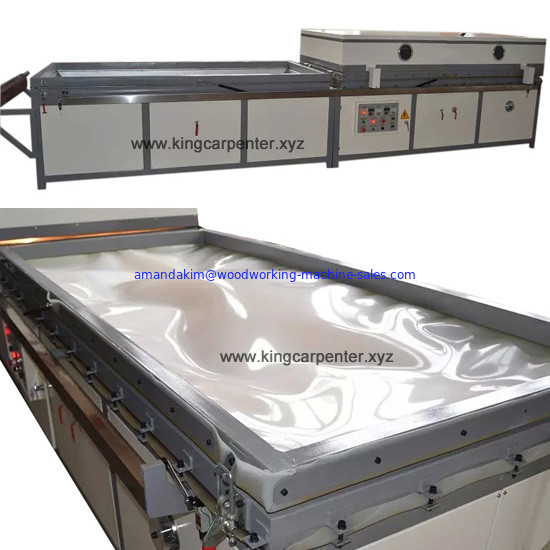

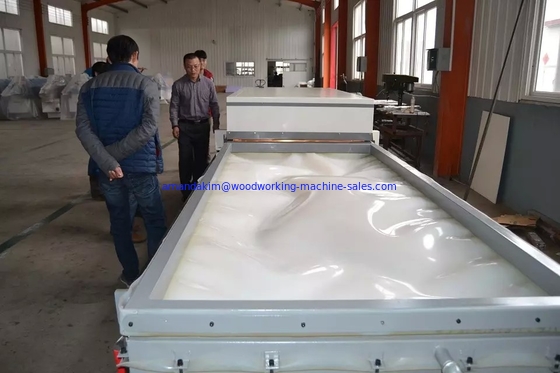

    Veneer Vacuum Membrane Press Machine

    Door skin machine



    Characteristics:

    1.Stainless heating elements can heat evenly and improve the efficiency.



    2.Double layer thermal preservation and full sealing design can save energy.



    3.Special steel plate worktable is proof against high temperature and corrosion.



    4.Vacuum pump of high quality is efficient, stable and durable.

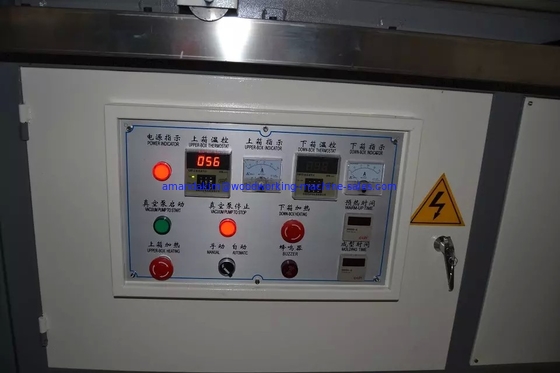

    5.Advanced digital technology can make sure of high level of automation and easy operation.



    6.All kinds of products can meet different clients’ needs.



    Function:

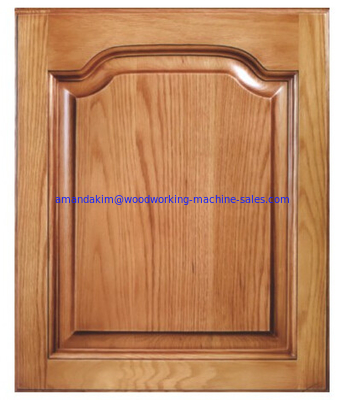

    It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.

    KC2500S VACUUM MEMBRANE PRESS MACHINE(NO.3)
    Overall Size 5500*1400*1300mm
    Worktable inner size 2550*1100mm or 2550*1300mm
    Max. working thickness 50mm
    Rating Working Pressure ≥-0.09Mpa
    Total Power 18.5kw
    Actual power consumption 8kw
    Net. Weight 1100kg
    Voltage 380V,50HZ,3phase
    Working video: https://youtu.be/IxUwt6IVWkc

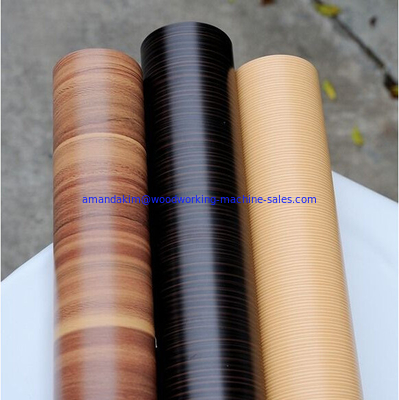

    We also supply glue,pvc for Veneer Vacuum Membrane Press machine

    Double Worktable Semi-automatic Vacuum Membrane Press Door skin machineDouble Worktable Semi-automatic Vacuum Membrane Press Door skin machineDouble Worktable Semi-automatic Vacuum Membrane Press Door skin machineDouble Worktable Semi-automatic Vacuum Membrane Press Door skin machineDouble Worktable Semi-automatic Vacuum Membrane Press Door skin machine
