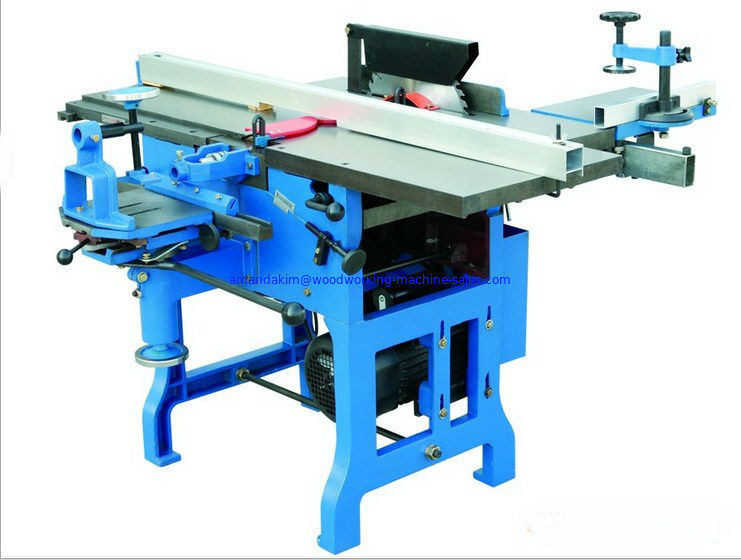

Combination woodworking machine MQ393D

Combination woodworking machine MQ393D

Combination woodworking machine MQ393D

Product Details:

Place of Origin: Shandong, China
Brand Name: KCARPENTER
Certification: CE
Model Number: MQ393D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 700usd/set
Packaging Details: Plywood box
Delivery Time: 15 days
Payment Terms: TT/ LC
Supply Ability: 20sets a month
Contact Now
Detailed Product Description



Combination woodworking machine MQ393D
Max.Planing Width 300mm
Maximum planer depth 3mm
Scale of thickness of press-planer 6-120mm
Minimum length of press-planer 150mm
Maximum sawing thickness 85mm
Maximum rabbet depth 10mm
Maximum drilling diameter 13mm
Maximum drilling depth 60 × 2 =120mm
Maximum width of square mortise 16mm
Maximum width of the tenon cut 16mm
Rotation speed of planer tool spindle 4290r/min
Motor power 2.2kw(220V 50Hz; 380V50Hz)
Feeding speed 6.5m/min
Packing dimensions 1360 × 1300 × 1030mm
Net weight 260kg
