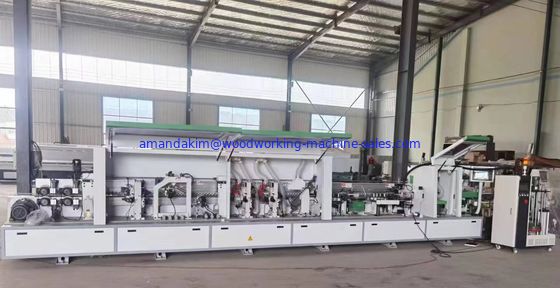

PUR Wood Edge Banding Machine with double glue tanks and double buffing

PUR Wood Edge Banding Machine with double glue tanks and double buffing

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: qingdao China
    Brand Name: KW
    Model Number: KC4108D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: inquiry
    Packaging Details: in plywood case
    Delivery Time: 30 days
    Payment Terms: D/P, L/C, T/T
    Supply Ability: 10 sets/months
    Contact Now
    Detailed Product Description

    Full automatic edge banding machine(with PUR glue tank)

    Model KC4108-2 Specification

    Test videos:

    https://youtu.be/pO9Z75cV4O0

    More test videos plz contact me by wechat or whatsapp, thank you.



    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    Model KC4108-2
    Control Panel MCGS toch screen
    Functions

    Pre-mill,glue,PUR glue,cut off,rough trim, fine trim, cut off,

    R-round trim,polish,polish. Total 10 functions (8 different functions)

    Motor power 18.6kw
    Voltage/HZ 220V 60HZ
    Machine size 8700*1000*1600mm
    Feed speed 15-22m/min
    Panel thickness 10-60mm
    Edge banding tape thickness 0.4-3mm
    Panel width ≥80mm
    Working air pressure 0.8Mpa
    N.W./G.W. 3200kgs/3400kgs



    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffingPUR Wood Edge Banding Machine with double glue tanks and double buffingPUR Wood Edge Banding Machine with double glue tanks and double buffingPUR Wood Edge Banding Machine with double glue tanks and double buffingPUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffing

    PUR Wood Edge Banding Machine with double glue tanks and double buffing
